Kubernetes 安装部署 Alist 并配置 Onlyoffice
一、简单介绍

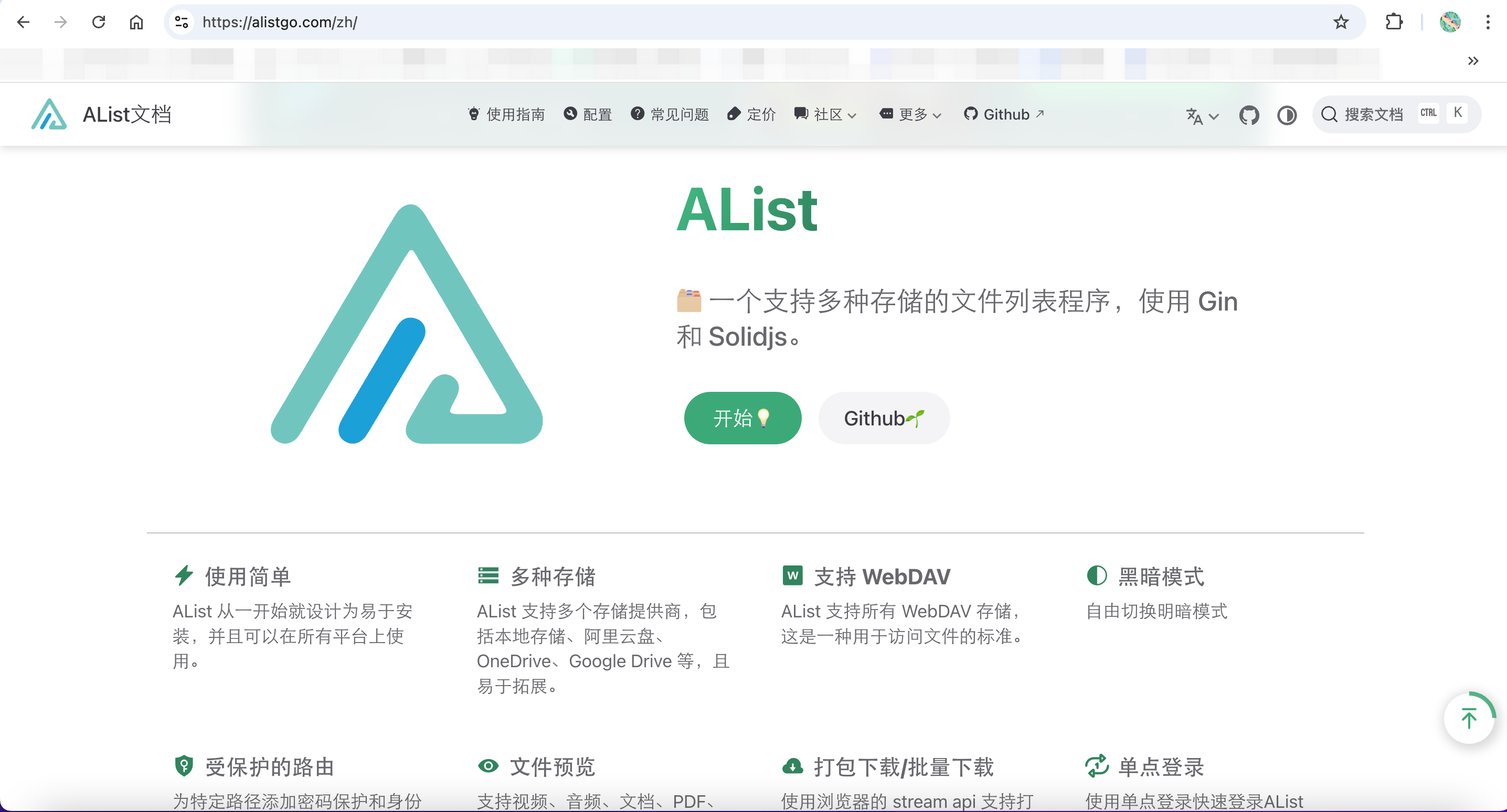

Alist 是一款支持多种存储的目录列表程序，可以将你的网盘、对象存储、本地存储等挂载成一个统一的目录，方便浏览、管理和分享文件。简单来说，它就像一个强大的文件管理器，可以让你轻松访问各种存储设备上的文件，并提供在线预览、下载、分享等功能。
Alist 的优势：
支持多种存储： 支持 OneDrive、Google Drive、阿里云盘、百度网盘、WebDAV、S3 等多种存储方式。
界面简洁美观： 采用 Material Design 风格，界面简洁易用。
功能强大： 支持文件预览、下载、分享、搜索、权限管理等功能。
安全可靠： 数据存储在你的存储设备上，安全可靠。
开源免费： 开源免费，可以自由使用和修改。
部署方式：
Alist 支持多种部署方式，包括 Docker、宝塔面板、直接运行等。这里以 K8S 部署为例，介绍部署方法。
并且配合使用 onlyoffice 工具打开 Office 办公文档
并且本次部署所需要的域名均为 https，并且由于我的证书是自签名的证书，所以如下配置过程中还使用相关的配置来完成了本地信任证书，以便服务可以正常访问
二、开始部署
1. 部署 Alist 服务
目录结构
[root@k8s-master1 alist-server]# tree
.
├── deployment.yaml
├── onlyoffice
│ ├── Dockerfile
│ ├── onlyoffice-deployment.yaml
│ └── onlyoffice-nginx.yaml
└── pvc.yaml
1 directory, 5 files部署 alist-deployment
apiVersion: apps/v1
kind: Deployment
metadata:
name: alist
namespace: k8s-app
spec:
replicas: 1
selector:
matchLabels:
app: alist
template:
metadata:
labels:
app: alist
spec:
containers:
- name: alist
image: harbor.tianxiang.love:30443/k8s-app/alist:latest-aio
ports:
- containerPort: 5244
env:
- name: TZ
value: "Asia/Shanghai"
- name: PUID
value: "0"
- name: PGID
value: "0"
- name: UMASK
value: "022"
resources:
requests:
memory: "256Mi"
cpu: "250m"
limits:
memory: "2048Mi"
cpu: "500m"
volumeMounts:
- name: alist-data
mountPath: /opt/alist/data
livenessProbe:
httpGet:
path: /
port: 5244
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /
port: 5244
initialDelaySeconds: 5
periodSeconds: 5
volumes:
- name: alist-data
persistentVolumeClaim:
claimName: alist-pvc
---
apiVersion: v1
kind: Service
metadata:
name: alist-service
namespace: k8s-app
labels:
app: alist
spec:
selector:
app: alist
ports:
- port: 80
targetPort: 5244
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: alist-ingress
namespace: k8s-app
annotations:
# 正则表达式来匹配路径
nginx.ingress.kubernetes.io/use-regex: "true"
# 设置为"0"表示没有限制请求体的大小
nginx.ingress.kubernetes.io/proxy-body-size: "0"
# 以下是新增的超时相关配置
nginx.ingress.kubernetes.io/proxy-connect-timeout: "600"
nginx.ingress.kubernetes.io/proxy-send-timeout: "600"
nginx.ingress.kubernetes.io/proxy-read-timeout: "600"
# 对于大文件上传可能需要更长时间
nginx.ingress.kubernetes.io/proxy-next-upstream-timeout: "600"
labels:
app: alist
spec:
ingressClassName: nginx
tls:
- hosts:
- alist.tianxiang.love
secretName: alist-tls-secret
rules:
- host: alist.tianxiang.love
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: alist-service
port:
number: 80创建 secret 证书
[root@k8s-master1 alist-server]# kubectl -n k8s-app create secret tls alist-tls-secret --cert=公钥.cert --key=私钥.key 启动服务
[root@k8s-master1 alist-server]# kubectl apply -f deployment.yaml
[root@k8s-master1 alist-server]# kubectl get pod -n k8s-app -l app=alist
NAME READY STATUS RESTARTS AGE
alist-d7687445d-64xhz 1/1 Running 0 37h
[root@k8s-master1 alist-server]# kubectl get svc -n k8s-app -l app=alist
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
alist-service ClusterIP 10.96.137.108 <none> 80/TCP 43h
[root@k8s-master1 alist-server]# kubectl get ingress -n k8s-app -l app=alist
NAME CLASS HOSTS ADDRESS PORTS AGE

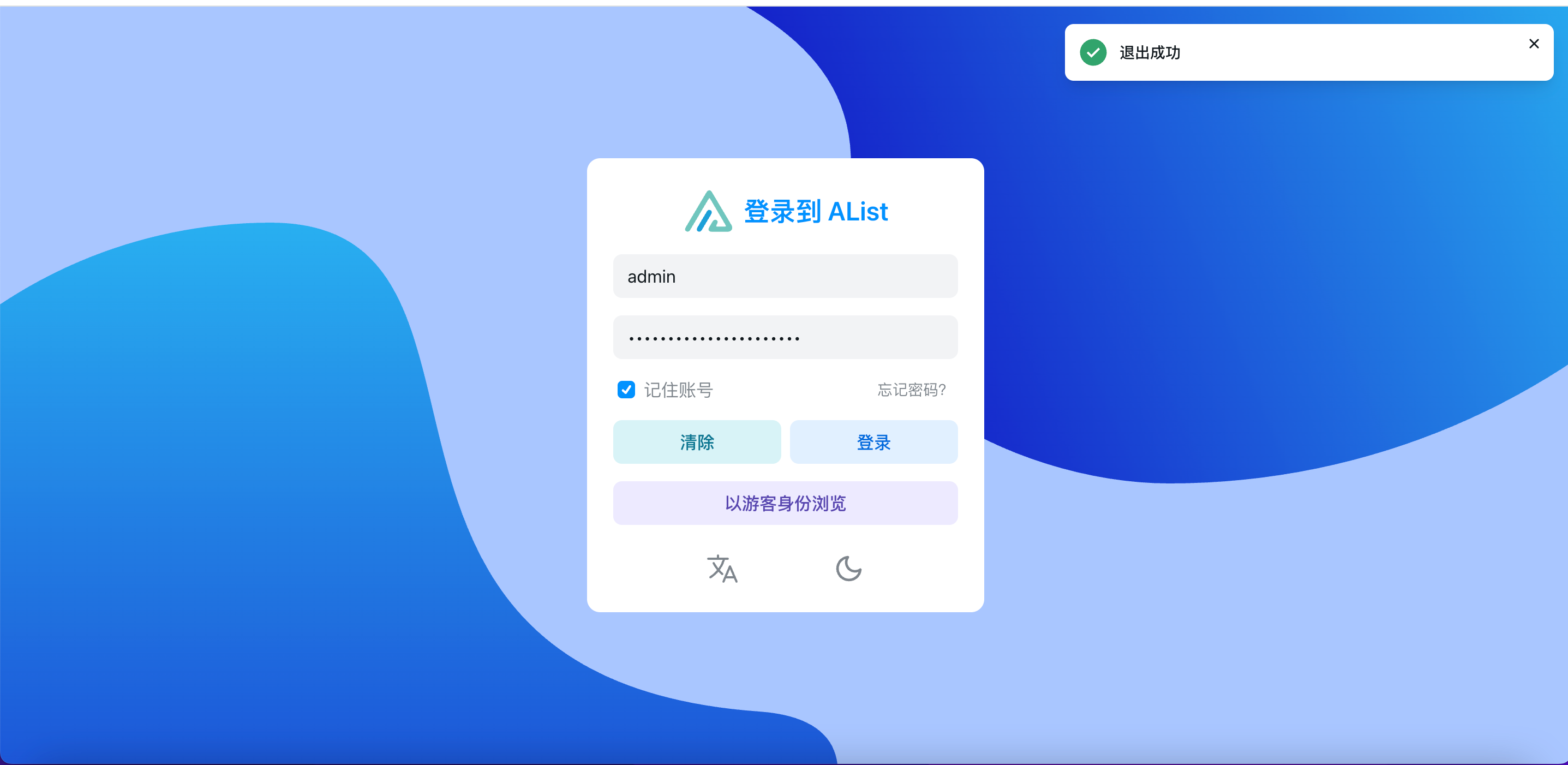

alist-ingress nginx alist.tianxiang.love 10.96.5.64 80, 443 43h查看服务日志获取初始登陆密码
[root@k8s-master1 alist-server]# kubectl -n k8s-app logs -f alist-57c4b9d7c4-sgcgz访问页面查看
2. 部署 OnlyOffice 服务
OnlyOffice 是一款强大的在线文档协作套件，支持 Word、Excel、PPT 等多种格式，广泛应用于企业私有云和协作平台。本教程将手把手教你如何在本地或服务器上快速部署 OnlyOffice Document Server，并实现基本的安全配置和常见问题排查。
[root@k8s-master1 onlyoffice]# cat onlyoffice-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: onlyoffice-ds
namespace: k8s-app
labels:
app: onlyoffice-ds
spec:
replicas: 1
selector:
matchLabels:
app: onlyoffice-ds
template:
metadata:
labels:
app: onlyoffice-ds
spec:
# 配置 pod 内的 hosts 解析，当然你也可以在 coredns 中配置解析
hostAliases:
- ip: "192.168.233.246"
hostnames:
- "onlyoffice.tianxiang.love"
- "onlyoffice-nginx.tianxiang.love"
- "alist.tianxiang.love"
containers:
- name: onlyoffice-ds
image: registry.cn-hangzhou.aliyuncs.com/tianxiang_app/documentserver:7.1.1
env:
# 关键：设置 OnlyOffice 忽略 SSL 证书验证
- name: USE_UNAUTHORIZED_STORAGE
value: "true"
# JWT 配置
- name: JWT_ENABLED
value: "false"
- name: JWT_SECRET
value: "secret"
# 其他环境变量
- name: FRAME_ANCESTORS
value: "https://onlyoffice-nginx.tianxiang.love:30443 https://onlyoffice.tianxiang.love:30443"
- name: WOPI_ENABLED
value: "false"
ports:
- containerPort: 80
volumeMounts:
- name: data-volume
mountPath: /var/www/onlyoffice/Data
resources:
requests:
memory: "512Mi"
cpu: "250m"
limits:
memory: "2Gi"
cpu: "1000m"
volumes:
- name: data-volume
persistentVolumeClaim:
claimName: onlyoffice-pvc
restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
labels:
app: onlyoffice-ds
name: onlyoffice-service
namespace: k8s-app
spec:
selector:
app: onlyoffice-ds
ports:
- port: 80
targetPort: 80
type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
labels:
app: onlyoffice-service
name: onlyoffice-ingress
namespace: k8s-app
annotations:
nginx.ingress.kubernetes.io/proxy-body-size: "100m"
nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
nginx.ingress.kubernetes.io/configuration-snippet: |
add_header Permissions-Policy "autoplay=*, camera=*, fullscreen=*, microphone=*, display-capture=*" always;
add_header Feature-Policy "autoplay *; camera *; fullscreen *; microphone *; display-capture *" always;
add_header X-Frame-Options "ALLOWALL" always;
spec:
ingressClassName: nginx
tls:
- hosts:
- onlyoffice.tianxiang.love
secretName: onlyoffice-tls-secret
rules:
- host: onlyoffice.tianxiang.love
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: onlyoffice-service
port:
number: 80
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
labels:
app: onlyoffice-ds
name: onlyoffice-pvc
namespace: k8s-app
spec:
storageClassName: "nfs-provisioner-storage"
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi检查服务启动
[root@k8s-master1 onlyoffice]# kubectl get pod -n k8s-app -l app=onlyoffice-ds
NAME READY STATUS RESTARTS AGE

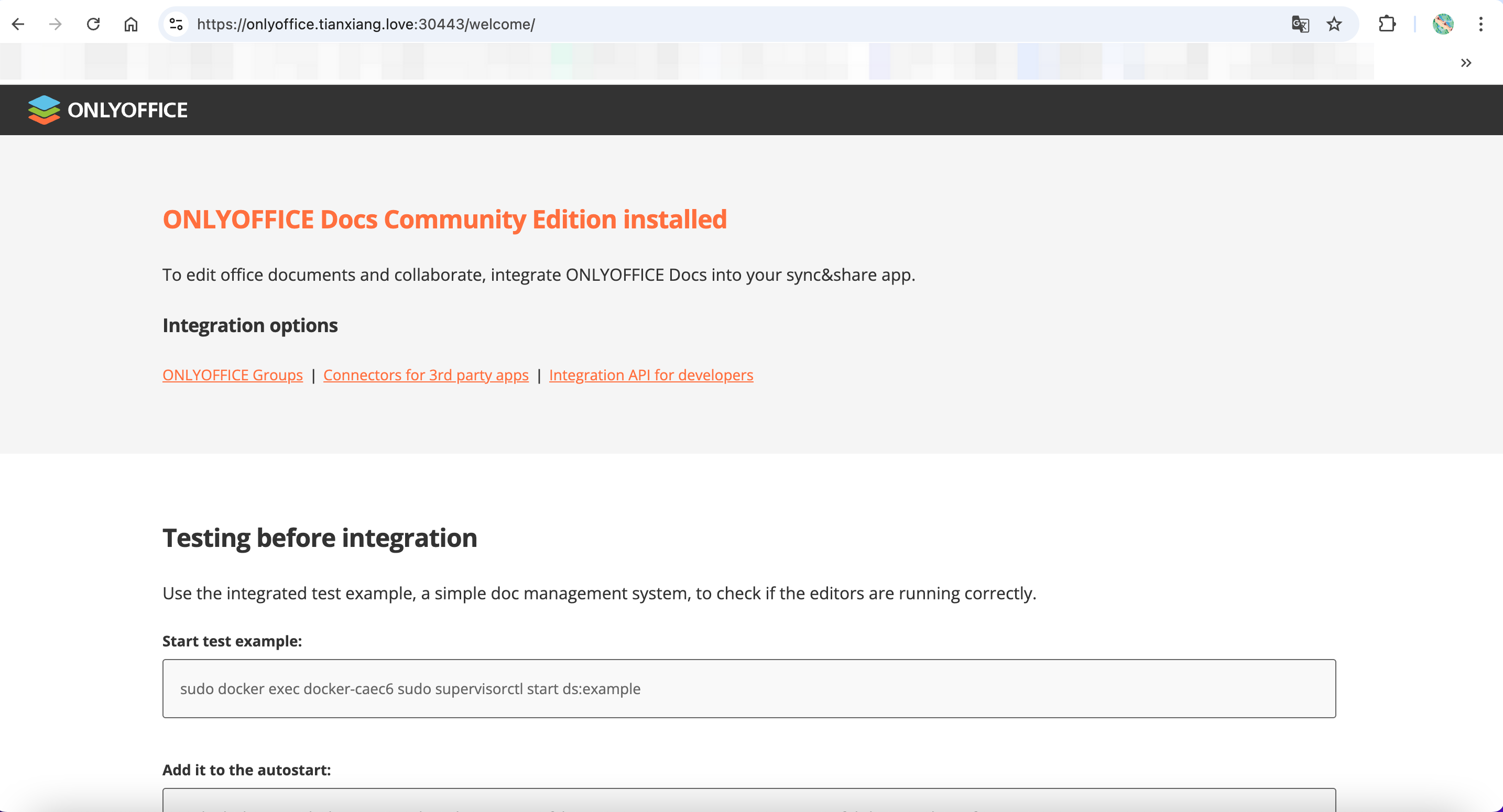

onlyoffice-ds-6f9955c79b-ltq7l 1/1 Running 0 18h页面访问测试
3. 部署 OnlyOffice-nginx
OnlyOffice DocumentServer 无法离开 nginx，它是 DocumentServer 的对外服务入口、静态资源托管、WebSocket 转发、HTTPS 终端、CORS 管理、负载均衡器。Alist 服务配置 onlyoffice-nginx 的域名，而不是直接配置 onlyoffice 的域名。
如下配置文件中，请注意审查所引用的 https://域名:30443 如果你要部署属于自己的 alist onlyoffice onlyoffice-nginx 那么请您替换为自己的域名
[root@k8s-master1 onlyoffice]# cat onlyoffice-nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: onlyoffice-nginx
namespace: k8s-app
labels:
app: onlyoffice-nginx
spec:
replicas: 1
selector:
matchLabels:
app: onlyoffice-nginx
template:
metadata:
labels:
app: onlyoffice-nginx
spec:
hostAliases:
- ip: "192.168.233.246"
hostnames:
- "onlyoffice.tianxiang.love"
- "onlyoffice-nginx.tianxiang.love"
- "alist.tianxiang.love"
containers:
- name: onlyoffice-nginx
image: harbor.tianxiang.love:30443/library/nginx:alpine
command:
- sh
- -c
- |
# 添加自签名证书
update-ca-certificates
# 启动 nginx
nginx -g "daemon off;"
ports:
- containerPort: 80
volumeMounts:
- name: nginx-config
mountPath: /etc/nginx/conf.d/default.conf
subPath: default.conf
- name: nginx-html
mountPath: /usr/share/nginx/html
- name: php-files
mountPath: /var/www/html
- name: onlyoffice-ca
mountPath: /usr/local/share/ca-certificates/ca.crt
subPath: ca.crt
resources:
requests:
memory: "128Mi"
cpu: "100m"
limits:
memory: "256Mi"
cpu: "500m"
- name: php-fpm
image: harbor.tianxiang.love:30443/library/php:8.2-fpm-alpine
securityContext:
runAsUser: 0
command:
- sh
- -c
- |
# 添加自签名证书
update-ca-certificates
# 启动 php-fpm
php-fpm
volumeMounts:
- name: php-files
mountPath: /var/www/html
- name: onlyoffice-ca
mountPath: /usr/local/share/ca-certificates/ca.crt
subPath: ca.crt
resources:
requests:
memory: "128Mi"
cpu: "100m"
limits:
memory: "256Mi"
cpu: "500m"
volumes:
- name: nginx-config
configMap:
name: nginx-config
- name: nginx-html
configMap:
name: nginx-html
- name: php-files
configMap:
name: php-files
- name: onlyoffice-ca
configMap:
name: onlyoffice-ca
restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
labels:
app: onlyoffice-nginx
name: onlyoffice-nginx
namespace: k8s-app
spec:
selector:
app: onlyoffice-nginx
ports:
- port: 80
targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
labels:
app: onlyoffice-nginx
name: onlyoffice-nginx
namespace: k8s-app
annotations:
nginx.ingress.kubernetes.io/proxy-body-size: "100m"
nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
nginx.ingress.kubernetes.io/configuration-snippet: |
add_header Permissions-Policy "autoplay=*, camera=*, fullscreen=*, microphone=*, display-capture=*" always;
add_header Feature-Policy "autoplay *; camera *; fullscreen *; microphone *; display-capture *" always;
add_header X-Frame-Options "ALLOWALL" always;
spec:
ingressClassName: nginx
tls:
- hosts:
- onlyoffice-nginx.tianxiang.love
secretName: onlyoffice-nginx-tls-secret
rules:
- host: onlyoffice-nginx.tianxiang.love
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: onlyoffice-nginx
port:
number: 80
---
apiVersion: v1
kind: ConfigMap
metadata:
name: onlyoffice-ca
namespace: k8s-app
data:
ca.crt: |
-----BEGIN CERTIFICATE-----
MIIFozCCA4ugAwIBAgIJAITwpMXGZfZCMA0GCSqGSIb3DQEBDQUAMGgxCzAJBgNV
BAYTAkNOMRAwDgYDVQQIDAdCZWlqaW5nMRAwDgYDVQQHDAdCZWlqaW5nMRMwEQYD
VQQKDApFeGFtcGxlIENBMQswCQYDVQQLDAJDQTETMBEGA1UEAwwKTXkgUm9vdCBD
QTAeFw0yNTA2MzAwNjUzNTVaFw0zNTA2MjgwNjUzNTVaMGgxCzAJBgNVBAYTAkNO
MRAwDgYDVQQIDAdCZWlqaW5nMRAwDgYDVQQHDAdCZWlqaW5nMRMwEQYDVQQKDApF
eGFtcGxlIENBMQswCQYDVQQLDAJDQTETMBEGA1UEAwwKTXkgUm9vdCBDQTCCAiIw
DQYJKoZIhvcNAQEBBQADggIPADCCAgoCggIBAK0BSNb2CSx81m8itcWPLh11YJ1u
uejzCBqg/voRpBG+zru7eDDGj7pmk/9Nm1cnY+TcxZSqRi5KTCEvrPWwjwSZKwsx
o8W433y7GJelxNUXtJcAuFr5T0DGS4ecMc+QO7j2a4+JFORUEBDZTLRo+QrLjUCP
88cnEDAGkDkYIyzEpNMmU9HJjc9ZZk61tJEqfwygwt0F5ALA9cyyTcm1y6UqQZhG
lUJFdJ9xjZp+h1AnC40ic13etYow6P7a+C7lBMprcE+GMvKlMGO8JoRK5i3smd1u
/fqsr0kD9XDg309aZPXi0vftlyybkTybhurmItAcRUTUVQFPhPagVId6rRa3jHj4
5x7BqvxKcsNOvVO1IucaRtJegO/lo5kOJxRf6jtnAP4cpAJIoUo6LkPQ3Vxn3at7
b8WvNDicYs+bEFTAeKjxJNVI/y7a9LUssNZtTvcy9qFDoq71Xwrdl069pOIgui2L
M8nGP3tbTM/0X6+aq9GgXHuMjxY5uyCk8sDU2DnkFz5Fz014Rc3Fswsl1ewa2qvW
NO8lxPTBjOWkswTTblv5k+Fdne41wp38Qj/C+HSYC8GrQJG6Y+0I42y7zcTE/81s
PGB/3nTDmpGsnRs5+m5b0mvPoI8TKqYj1OkYGH2SbzPWkeidG93uoS0FzHdUINbm
94TB6yX6zkHPa4SdAgMBAAGjUDBOMB0GA1UdDgQWBBSg+Eh72jFxToroSSUFtPcn
Q+SzVTAfBgNVHSMEGDAWgBSg+Eh72jFxToroSSUFtPcnQ+SzVTAMBgNVHRMEBTAD
AQH/MA0GCSqGSIb3DQEBDQUAA4ICAQBq6KZjTtoGLbkIDIqAXc91ZGBrLOOrMHjh
ynwZI+1rvwzz/egCUb1W1lTfFy/d2OUtr+bGKCWZrIL8PzeWVofCP9edOxpTri/s
jCTscGuHN532ysk6Zx2z6QV7AO/Pe4AzbxgvOLySOPySOd/wkuXqD9dI38O0aJ3Y
SZyIiA5mZYPZ0YZJ7QKRKT+B4aqfN+fWQelrqAfJEwBVKP/GbiDxav+4Yvu4/kvY
jrcE+TCzBCRov/pNr0R/SFgg8qG/aVsGPYu7rsw7Y/yvrRqMid55/CHPlUXoCooH
zFYPqbzIa5xOlrrHFAdUuUQY0bE/diHi89XK8BArdI3iTvtk2HensANi/1rk5t6z
5Hr+cJP01gNbELOHQTJ8Qyf4BstMgByeO2cf+xDJIyYveVAMp/6+HoRKZPMD/x7P
vGM0PqT7jYQXUCQpS1jG0vDixLDnf/VPhGooDGKwn87IbscqQsBJDr5Er5ydbSn5
gASKNBn1WICki6Gs/qq6iOvfR+fDR9xsVt57Ry3FuLnP91Q4gJuzzc3AK74ip63V
8EKDrhQd5XAnVaoULaIch9U0vis/Q27qUXzK+Vu5KfgQlmqKceHfse5gyMwk42tB
YLv/fKXvvb5V9Ov85VMoyk6O9muhVVG3S5gDF807ls3NPDtSvhUdVL1VghVwoECN
ZmqzUcx+jg==
-----END CERTIFICATE-----
---
apiVersion: v1
kind: ConfigMap
metadata:
name: nginx-config
namespace: k8s-app
data:
default.conf: |
server {
listen 80;
server_name onlyoffice-nginx.tianxiang.love;
location / {
root /usr/share/nginx/html;
index view.html edit.html;
try_files $uri $uri/ =404;
}
location ~ \.php$ {
# 修正：指向本地 PHP-FPM 容器
fastcgi_pass 127.0.0.1:9000;
# 修正：添加必要的 fastcgi 参数
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME /var/www/html$fastcgi_script_name;
fastcgi_param QUERY_STRING $query_string;
fastcgi_param REQUEST_METHOD $request_method;
fastcgi_param CONTENT_TYPE $content_type;
fastcgi_param CONTENT_LENGTH $content_length;
fastcgi_param SCRIPT_NAME $fastcgi_script_name;
fastcgi_param REQUEST_URI $request_uri;
fastcgi_param DOCUMENT_URI $document_uri;
fastcgi_param DOCUMENT_ROOT /var/www/html;
fastcgi_param SERVER_PROTOCOL $server_protocol;
fastcgi_param GATEWAY_INTERFACE CGI/1.1;
fastcgi_param SERVER_SOFTWARE nginx/$nginx_version;
fastcgi_param REMOTE_ADDR $remote_addr;
fastcgi_param REMOTE_PORT $remote_port;
fastcgi_param SERVER_ADDR $server_addr;
fastcgi_param SERVER_PORT $server_port;
fastcgi_param SERVER_NAME $server_name;
# PHP only, required if PHP was built with --enable-force-cgi-redirect
fastcgi_param REDIRECT_STATUS 200;
include fastcgi_params;
}
}
---
apiVersion: v1
kind: ConfigMap
metadata:
name: nginx-html
namespace: k8s-app
data:
view.html: |
<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="UTF-8">
<title>OnlyOffice Viewer</title>
<style>
html, body {
margin: 0;
padding: 0;
height: 100%;
}
#placeholder {
width: 100%;
height: 100%;
position: absolute;
top: 0;
left: 0;
}
.info-box {
font-family: Arial, sans-serif;
padding: 40px;
}
.info-box h1 {
color: #0066cc;
}
.info-box code {
background: #f4f4f4;
padding: 6px 10px;
border-radius: 6px;
display: inline-block;
margin-top: 10px;
}
.info-box .section {
margin-top: 20px;
padding: 15px;
background: #fafafa;
border-radius: 8px;
border: 1px solid #eee;
}
</style>
</head>
<body>
<div id="placeholder"></div>
<script type="text/javascript"
src="https://onlyoffice.tianxiang.love:30443/web-apps/apps/api/documents/api.js"></script>
<script>
function getQueryParamValue(name) {
const searchParams = new URLSearchParams(window.location.search);
return searchParams.get(name);
}
const url = decodeURIComponent(getQueryParamValue("src") || "");
// 如果用户 GET 访问并且没有 src 参数 → 显示提示页面
if (!url) {
document.body.innerHTML = `
<div class="info-box">
<h1>OnlyOffice 在线预览服务</h1>
<p>你正在访问一个用于 <b>在线预览 Office 文档</b> 的页面。</p>
<div class="section">
<h3>📌 用法说明</h3>
<p>你需要在 URL 中通过 <code>?src=文件URL</code> 指定要预览的文件。</p>
<p>示例：</p>
<code>
https://onlyoffice-nginx.tianxiang.love:30443/view.html?src=https://example.com/test.docx
</code>
</div>
<div class="section">
<h3>🛠 当前配置说明</h3>
<ul>
<li>模式：<b>只读预览（view mode）</b></li>
<li>允许下载：✔</li>
<li>允许打印：✔</li>
<li>允许评论：✔</li>
<li>允许表单填写：✔</li>
<li>禁止编辑：✘</li>
<li>OnlyOffice DocumentServer 地址：<br>
<code>https://onlyoffice.tianxiang.love:30443</code>
</li>
</ul>
</div>
<div class="section">
<h3>📄 支持文件类型</h3>
<p>docx / xlsx / pptx / pdf / txt / csv 等</p>
</div>
<p style="margin-top:30px;color:#999">如果你看到这个页面，说明当前没有指定要预览的文档。</p>
</div>
`;
} else {
// 否则加载 OnlyOffice
const fileName = url.substring(url.lastIndexOf('/') + 1, url.includes('?') ? url.lastIndexOf('?') : url.length);
const fileExtension = fileName.split('.').pop();
const docEditor = new DocsAPI.DocEditor("placeholder", {
"document": {
"fileType": fileExtension,
"permissions": {
"edit": false,
"comment": true,
"download": true,
"print": true,
"fillForms": true,
},
"title": fileName,
"url": url,
},
"editorConfig": {
"lang": "zh",
"mode": "view",
},
"height": "100%",
"type": "embedded",
});
}
</script>
</body>
</html>
edit.html: |
<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="UTF-8">
<title>OnlyOffice Editor</title>
<style>
html, body {
margin: 0;
padding: 0;
height: 100%;
}
#placeholder {
width: 100%;
height: 100%;
position: absolute;
top: 0;
left: 0;
}
.info-box {
font-family: Arial, sans-serif;
padding: 40px;
}
.info-box h1 {
color: #0066cc;
}
.info-box code {
background: #f4f4f4;
padding: 6px 10px;
border-radius: 6px;
display: inline-block;
margin-top: 10px;
}
.info-box .section {
margin-top: 20px;
padding: 15px;
background: #fafafa;
border-radius: 8px;
border: 1px solid #eee;
}
</style>
</head>
<body>
<div id="placeholder"></div>
<script type="text/javascript"
src="https://onlyoffice.tianxiang.love:30443/web-apps/apps/api/documents/api.js"></script>
<script>
function getQueryParamValue(name) {
const searchParams = new URLSearchParams(window.location.search);
return searchParams.get(name);
}
const url = decodeURIComponent(getQueryParamValue("src") || "");
// GET 访问无参数 → 显示提示页面
if (!url) {
document.body.innerHTML = `
<div class="info-box">
<h1>OnlyOffice 在线编辑服务</h1>
<p>此页面用于 <b>在线编辑 Office 文档</b> （Word / Excel / PPT）。</p>
<div class="section">
<h3>📌 使用方法</h3>
<p>通过 URL 传递要编辑的文件地址：</p>
<code>
https://onlyoffice-nginx.tianxiang.love:30443/edit.html?src=https://example.com/demo.docx
</code>
</div>
<div class="section">
<h3>🛠 当前编辑配置</h3>
<ul>
<li>模式：<b>编辑模式（edit）</b></li>
<li>允许编辑：✔</li>
<li>允许注释：✔</li>
<li>允许下载：✔</li>
<li>允许打印：✔</li>
<li>允许表单填写：✔</li>
<li>允许修订（Review）：✔</li>
<li>forcesave：开启 ✔</li>
<li>回调地址：<br>
<code>https://onlyoffice-nginx.tianxiang.love:30443/callback.php</code>
</li>
</ul>
</div>
<div class="section">
<h3>📄 支持文件类型</h3>
<p>docx、xlsx、pptx、csv、docm、dotx 等现代格式</p>
</div>
<p style="margin-top:30px;color:#999">如果你看到这个页面，说明当前没有指定要编辑的文件。</p>
</div>
`;
} else {
// 正常加载 OnlyOffice 编辑器
const fileName = url.substring(url.lastIndexOf('/') + 1, url.includes('?') ? url.lastIndexOf('?') : url.length);
const fileExtension = fileName.split('.').pop();
function generateDocumentKey(url) {
const allowedChars = '0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ-._=';
const fileName = url.substring(url.lastIndexOf('/') + 1);
const timestamp = new Date().toISOString();
let key = fileName + timestamp;
key = encodeURIComponent(key).substr(0, 20);
key = key.split('').filter(char => allowedChars.includes(char)).join('');
return key;
}
const docEditor = new DocsAPI.DocEditor("placeholder", {
"document": {
"fileType": fileExtension,
"title": fileName,
"url": url,
"key": generateDocumentKey(url),
"permissions": {
"edit": true,
"comment": true,
"download": true,
"print": true,
"fillForms": true,
"review": true,
"copy": true,
"modifyContentControl": true,
"modifyFilter": true,
"export": true
}
},
"editorConfig": {
"lang": "zh",
"region": "zh-CN",
"mode": "edit",
"callbackUrl": `https://onlyoffice-nginx.tianxiang.love:30443/callback.php?file_url=${encodeURIComponent(url)}`,
"callbacks": {
"onError": (error) => console.error("OnlyOffice 错误:", error),
"onReady": () => console.log("OnlyOffice 编辑器已加载")
},
"customization": {
"forcesave": true,
"compactHeader": false,
"showReviewChanges": true,
"hideRightMenu": false,
"spellcheck": false,
"features": {
"spellcheck": { "mode": false }
}
}
},
"height": "100%",
"type": "desktop"
});
}
</script>
</body>
</html>
---
apiVersion: v1
kind: ConfigMap
metadata:
name: php-files
namespace: k8s-app
data:
callback.php: |
<?php
error_reporting(E_ALL & ~E_WARNING);
ini_set('display_errors', 0);
// Alist 登陆配置
$config = [
'alist' => [
'base_url' => 'https://alist.tianxiang.love:30443',
'username' => 'admin',
'password' => 'password',
],
];
$cached_token = null;
$token_expires = 0;
// 封装的 curl POST 请求函数
function curl_post($url, $header, $data) {
$curl = curl_init();
curl_setopt_array($curl, [
CURLOPT_URL => $url,
CURLOPT_SSL_VERIFYPEER => FALSE,
CURLOPT_SSL_VERIFYHOST => FALSE,
CURLOPT_POST => 1,
CURLOPT_POSTFIELDS => $data,
CURLOPT_HTTPHEADER => $header,
CURLOPT_RETURNTRANSFER => 1,
CURLOPT_TIMEOUT => 30
]);
$output = curl_exec($curl);
curl_close($curl);
return $output;
}
// 封装的 curl PUT 请求函数
function curl_put($url, $header, $data) {
$curl = curl_init();
curl_setopt_array($curl, [
CURLOPT_URL => $url,
CURLOPT_SSL_VERIFYPEER => FALSE,
CURLOPT_SSL_VERIFYHOST => FALSE,
CURLOPT_CUSTOMREQUEST => "PUT",
CURLOPT_HTTPHEADER => array_map('trim', $header),
CURLOPT_POSTFIELDS => $data,
CURLOPT_RETURNTRANSFER => true,
CURLOPT_ENCODING => '',
CURLOPT_MAXREDIRS => 10,
CURLOPT_TIMEOUT => 0,
CURLOPT_FOLLOWLOCATION => true,
CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
CURLOPT_HEADER => true
]);
$output = curl_exec($curl);
$header_size = curl_getinfo($curl, CURLINFO_HEADER_SIZE);
$body = substr($output, $header_size);
curl_close($curl);
return $body;
}
// 封装的 curl GET 请求函数（用于下载文件）
function curl_get_contents($url) {
$curl = curl_init();
curl_setopt_array($curl, [
CURLOPT_URL => $url,
CURLOPT_SSL_VERIFYPEER => FALSE,
CURLOPT_SSL_VERIFYHOST => FALSE,
CURLOPT_RETURNTRANSFER => 1,
CURLOPT_TIMEOUT => 30
]);
$output = curl_exec($curl);
curl_close($curl);
return $output;
}
// 添加新的 curl GET 请求函数
function curl_get($url, $header) {
$curl = curl_init();
curl_setopt_array($curl, [
CURLOPT_URL => $url,
CURLOPT_SSL_VERIFYPEER => FALSE,
CURLOPT_SSL_VERIFYHOST => FALSE,
CURLOPT_HTTPHEADER => array_map('trim', $header),
CURLOPT_RETURNTRANSFER => true,
CURLOPT_TIMEOUT => 30
]);
$output = curl_exec($curl);
curl_close($curl);
return $output;
}
// 检查 file_url 参数
if (!isset($_GET['file_url'])) {
http_response_code(400);
echo json_encode(["error" => 8, "message" => "Missing 'file_url' parameter"]);
exit;
}
$input_file_url = $_GET['file_url'];
$path = parse_url($input_file_url, PHP_URL_PATH);
if ($path === false || empty($path)) {
http_response_code(400);
echo json_encode(["error" => 10, "message" => "Invalid file_url"]);
exit;
}
// 不知为啥我这回传会多一个p文件夹，移除开头的斜杠，避免路径问题
$path = ltrim($path, '/');
if (strpos($path, 'p/') === 0) {
$path = substr($path, 2);
}
$filename = $path;
// 读取请求体
if (($body_stream = file_get_contents("php://input")) === FALSE) {
http_response_code(500);
echo json_encode(["error" => 1, "message" => "Failed to read input stream"]);
exit;
}
// 解析 JSON
$data = json_decode($body_stream, TRUE);
if ($data === null) {
http_response_code(400);
echo json_encode(["error" => 7, "message" => "Invalid JSON data"]);
exit;
}
// 检查 status 是否存在
if (!isset($data["status"])) {
http_response_code(400);
echo json_encode(["error" => 9, "message" => "Missing 'status' parameter"]);
exit;
}
// 获取 Alist token 的函数
function get_alist_token($config) {
global $cached_token, $token_expires;
$current_time = time();
if ($cached_token && $current_time < $token_expires) {
return $cached_token;
}
// 检查 curl 扩展是否可用
if (!function_exists('curl_init')) {
error_log("PHP curl extension is not available");
return null;
}
$login_url = $config['alist']['base_url'] . "/api/auth/login";
$login_data = json_encode([
"username" => $config['alist']['username'],
"password" => $config['alist']['password']
]);
$post_response = curl_post(
$login_url,
["Content-Type: application/json"],
$login_data
);
if ($post_response === FALSE || empty($post_response)) {
error_log("Failed to get response from Alist API: " . $login_url);
return null;
}
$post_response_data = json_decode($post_response, TRUE);
if ($post_response_data === null) {
error_log("Failed to decode Alist API response: " . $post_response);
return null;
}
if (!isset($post_response_data["data"]["token"])) {
error_log("Token not found in Alist API response: " . json_encode($post_response_data));
return null;
}
$cached_token = $post_response_data["data"]["token"];
$token_expires = $post_response_data["data"]["exp"] ?? $current_time + 300;
return $cached_token;
}
// 保存文档的通用函数
function save_document($data, $config, $input_file_url) {
$downloadUri = $data["url"];
if (($new_data = curl_get_contents($downloadUri)) === FALSE) {
return ["error" => 2, "message" => "Failed to download file"];
}
// 使用全局变量 $filename，避免重复解析路径
global $filename;
$path = $filename;
$max_retries = 3;
for ($retry = 0; $retry < $max_retries; $retry++) {
$token = get_alist_token($config);
if ($token === null) {
return ["error" => 3, "message" => "Failed to get token"];
}
$token = trim($token);
$put_response = curl_put(
$config['alist']['base_url'] . "/api/fs/put",
[
"Authorization: " . trim($token),
"File-Path: " . $path,
"As-Task: true",
"Content-Length: " . strlen($new_data),
"Content-Type: application/octet-stream"
],
$new_data
);
if ($put_response === FALSE) {
return ["error" => 4, "message" => "Failed to upload file"];
}
$put_response_data = json_decode($put_response, TRUE);
if ($put_response_data["code"] === 401) {
// 清除缓存的令牌
global $cached_token, $token_expires;
$cached_token = null;
$token_expires = 0;
if ($retry < $max_retries - 1) {
sleep(5);
continue;
}
return ["error" => 3, "message" => "Token is invalidated after multiple retries"];
}
if (isset($put_response_data["data"]["task"]["id"])) {
$task_id = $put_response_data["data"]["task"]["id"];
$max_wait = 60;
$wait_interval = 2;
$start_time = time();
for ($i = 0; $i < $max_wait; $i += $wait_interval) {
$task_response = curl_get(
$config['alist']['base_url'] . "/api/task/" . $task_id,
["Authorization: " . trim($token)]
);
$task_data = json_decode($task_response, TRUE);
if ($task_data["code"] === 200) {
$task_status = $task_data["data"]["status"] ?? "unknown";
if ($task_status === "finished") {
return ["error" => 0, "message" => "Success"];
} elseif ($task_status === "error") {
$error_msg = $task_data["data"]["error"] ?? "Unknown error";
return ["error" => 4, "message" => "Upload task failed: " . $error_msg];
}
}
sleep($wait_interval);
}
return ["error" => 4, "message" => "Upload task timed out"];
}
return ["error" => 0, "message" => "Success"];
}
return ["error" => 3, "message" => "Failed to upload file after multiple retries"];
}
// 处理不同状态码
switch ($data["status"]) {
case 1: // 文档已打开
$token = get_alist_token($config);
if ($token === null) {
http_response_code(500);
echo json_encode(["error" => 3, "message" => "Failed to get token"]);
} else {
http_response_code(200);
echo json_encode(["error" => 0, "message" => "Document opened"]);
}
break;
case 2: // 保存事件
case 6: // 文档关闭
$result = save_document($data, $config, $input_file_url);
if ($result["error"] !== 0) {
http_response_code(500);
echo json_encode($result);
} else {
http_response_code(200);
echo json_encode($result);
}
break;
default:
http_response_code(500);
echo json_encode(["error" => 5, "message" => "Unknown status code"]);
break;
}
?>检查服务启动
[root@k8s-master1 onlyoffice]# kubectl get pod -n k8s-app -l app=onlyoffice-nginx
NAME READY STATUS RESTARTS AGE
onlyoffice-nginx-75c557d694-p4ljw 2/2 Running 0 16h三、配置 Alist 预览

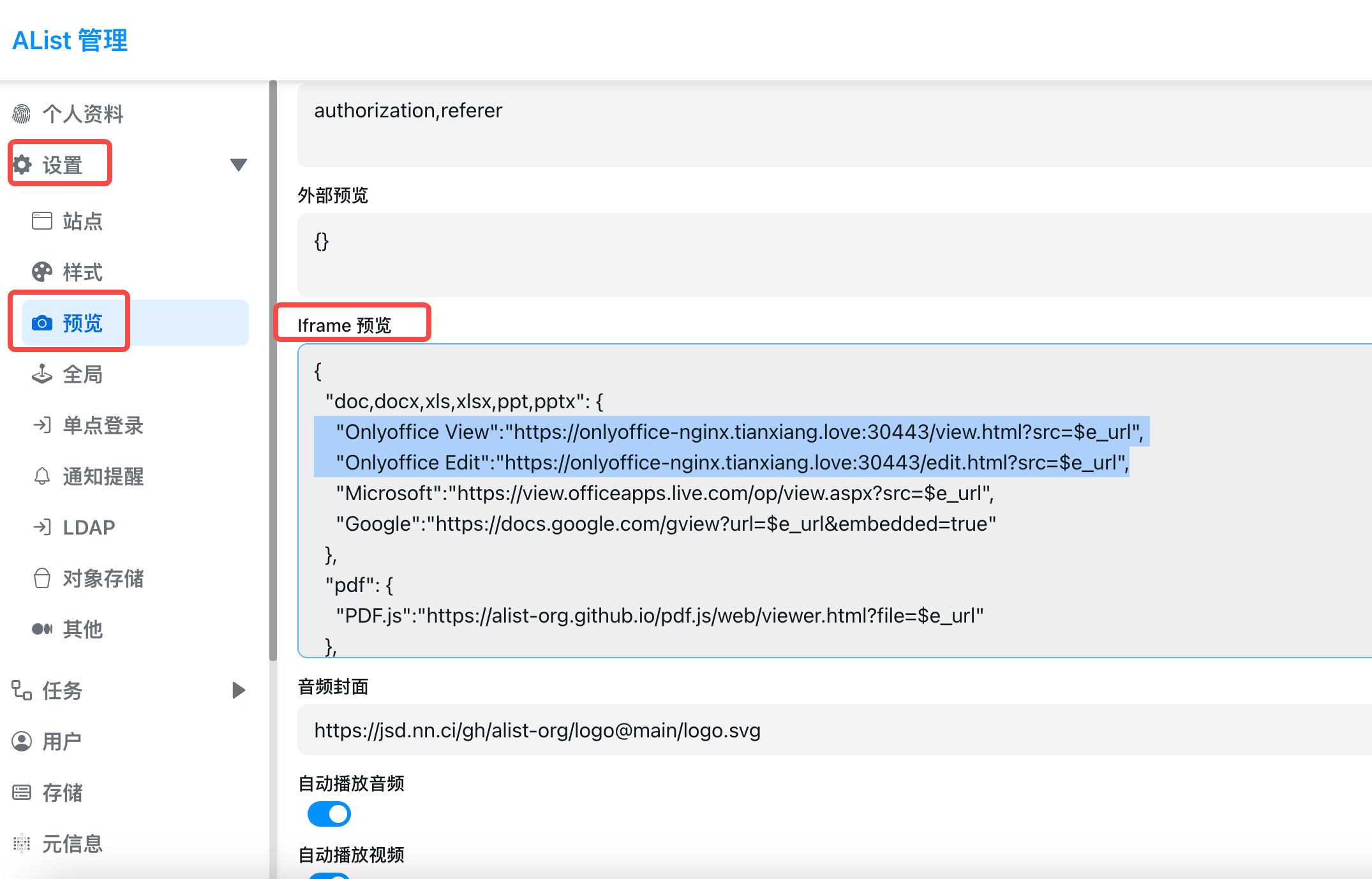

1. 添加配置
"Onlyoffice View":"https://onlyoffice-nginx.tianxiang.love:30443/view.html?src=$e_url",
"Onlyoffice Edit":"https://onlyoffice-nginx.tianxiang.love:30443/edit.html?src=$e_url",

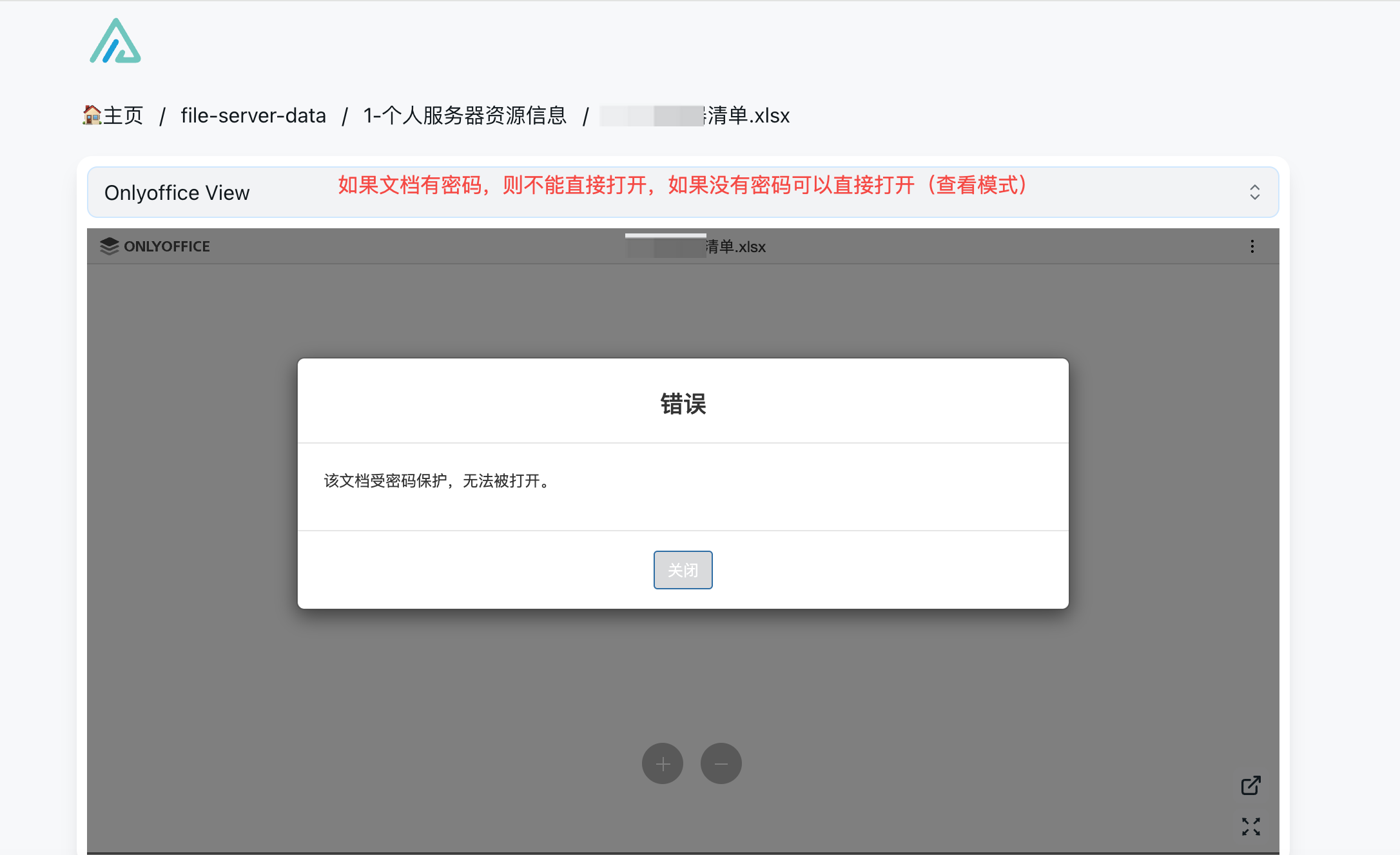

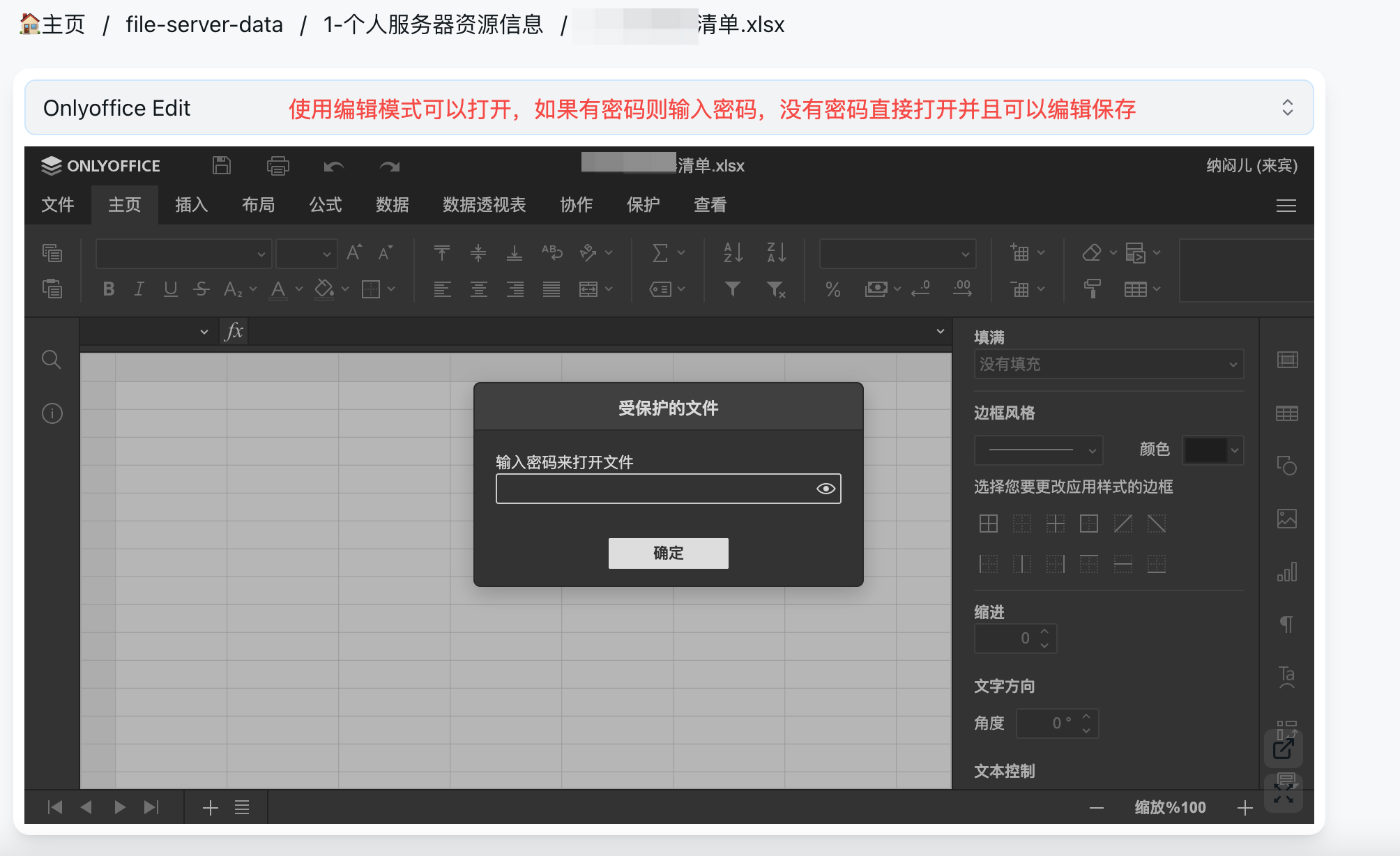

测试打开办公文件
License:
CC BY 4.0
