Prometheus 监控非 K8S 集群节点

Posted 2025-06-14 Updated 2025-06- 24

By Administrator

103~132 min read

k8s 中 helm 部署的 operator-prometheus 配合原生自带的 servicemonitor 和 promerules 非常好用，这篇文章中教学的是，监控非 k8s 集群资源，以及手写 exporter 监控二进制启动的服务

一、宿主机工作

1. 启动 node-exporter

为了方便省事我直接使用 docker 启动

[root@pro-dcim-01 ~]# docker run -dit --name node-exporter \
  --restart=always \
  -p 9100:9100 \
  -v "/proc:/host/proc:ro" \
  -v "/sys:/host/sys:ro" \
  -v "/:/host/root:ro" \
  --net="host" \
  quay.io/prometheus/node-exporter:v1.2.0 \
  --path.procfs /host/proc \
  --path.sysfs /host/sys \
  --path.rootfs /host/root \
  --web.listen-address=0.0.0.0:9100 \
  --collector.filesystem.ignored-mount-points "^/(dev|proc|sys|var/lib/docker/.+|var/lib/kubelet/.+)($|/)" \
  --collector.filesystem.ignored-fs-types "^(autofs|binfmt_misc|bpf|cgroup2?|configfs|debugfs|devpts|devtmpfs|fusectl|hugetlbfs|iso9660|mqueue|nsfs|overlay|proc|procfs|pstore|rpc_pipefs|securityfs|selinuxfs|squashfs|sysfs|tracefs)$"

查看运行状态

[root@pro-dcim-01 ~]# docker ps |grep node-exporter
bd2a6629826e   quay.io/prometheus/node-exporter:v1.2.0   "/bin/node_exporter …"   32 hours ago   Up 27 hours             node-exporter

2. 启动 service-exporter

二进制命令：service-exporter.zip

此服务使用来监控 systemd 管理启动的二进制服务

[root@pro-dcim-01 ~]# cat /etc/systemd/system/service-exporter.service
[Unit]
Description=Service Exporter for Prometheus
After=network.target

[Service]
User=root
Group=root
ExecStart=/usr/local/bin/service-exporter --server=service-exporter,redis,mysqld,vminsert,vmselect,vmstorage,emqx
Restart=on-failure
Environment=GODEBUG=netdns=cgo
CPUAccounting=yes
MemoryAccounting=yes

[Install]
WantedBy=multi-user.target

查看运行状态

[root@pro-dcim-01 ~]# systemctl status service-exporter.service
● service-exporter.service - Service Exporter for Prometheus
   Loaded: loaded (/etc/systemd/system/service-exporter.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2025-06-13 17:13:35 CST; 1 day 1h ago
 Main PID: 16568 (service-exporte)
    Tasks: 22
   Memory: 31.0M
   CGroup: /system.slice/service-exporter.service
           └─16568 /usr/local/bin/service-exporter --server=service-exporter,redis,mysqld,vminsert,vmselect,vmstorage,emqx

Jun 13 17:13:35 pro-dcim-01 systemd[1]: Started Service Exporter for Prometheus.
Jun 13 17:13:35 pro-dcim-01 service-exporter[16568]: 2025/06/13 17:13:35 监控以下服务: [service-exporter redis mysqld vminsert vmselect vmstorage emqx]
Jun 13 17:13:35 pro-dcim-01 service-exporter[16568]: 2025/06/13 17:13:35 Exporter 已启动，监听端口 9105

二、k8s 端工作

为了让 operator-prometheus 服务自动发现 agent ，所以要进行以下工作

1. 创建 node-exporter 的 service

$ cat pro-dcim-01-svc-node-exporter.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: pro-dcim-01-node-exporter
  name: pro-dcim-01-node-exporter
  namespace: monitoring
spec:
  ports:
  - name: pro-dcim-01-node-exporter
    port: 9100
    protocol: TCP
    targetPort: 9100
  type: ClusterIP

$ kubectl apply -f pro-dcim-01-svc-node-exporter.yaml

2. 创建 node-exporter 的 endpoints 资源

$ cat pro-dcim-01-endpoints-node-exporter.yaml
apiVersion: v1
kind: Endpoints
metadata:
  labels:
    app: pro-dcim-01-node-exporter
  name: pro-dcim-01-node-exporter
  namespace: monitoring
subsets:
- addresses:
  - ip: 192.168.198.31
  ports:
  - name: pro-dcim-01-node-exporter
    port: 9100
    protocol: TCP

$ kubectl apply -f pro-dcim-01-endpoints-node-exporter.yaml

3. 创建 service-exporter 的资源

$ cat pro-dcim-01-svc-service-exporter.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: pro-dcim-01-service-exporter
  name: pro-dcim-01-service-exporter
  namespace: monitoring
spec:
  ports:
  - name: pro-dcim-01-service-exporter
    port: 9105
    protocol: TCP
    targetPort: 9105
  type: ClusterIP

$ kubectl apply -f pro-dcim-01-svc-service-exporter.yaml

4. 创建 service-exporter 的 endpoints 资源

$ cat pro-dcim-01-endpoints-service-exporter.yaml
apiVersion: v1
kind: Endpoints
metadata:
  labels:
    app: pro-dcim-01-service-exporter
  name: pro-dcim-01-service-exporter
  namespace: monitoring
subsets:
- addresses:
  - ip: 192.168.198.31
  ports:
  - name: pro-dcim-01-service-exporter
    port: 9105
    protocol: TCP

$ kubectl apply -f pro-dcim-01-endpoints-service-exporter.yaml

5. 创建 node-exporter 服务自动发现

$ cat pro-dcim-01-node-exporter-monitoring.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: pro-dcim-01-node-exporter
  namespace: monitoring
  labels:
    release: kube-prometheus-stack  # 确保与 Prometheus 的配置匹配
spec:
  selector:
    matchLabels:
      app: pro-dcim-01-node-exporter  # 查找标签为 pro-dcim-01-node-exporter 的 service
  endpoints:
  - port: pro-dcim-01-node-exporter   # 查找 port 名称为 pro-dcim-01-node-exporter endpoints
    interval: 15s
    path: /metrics
    relabelings:
    - sourceLabels: [__address__]
      regex: '([^:]+):\d+'
      targetLabel: instance
      replacement: '${1}'
      action: replace
    # 静态标签
    - targetLabel: region
      replacement: "边缘机器"
    - targetLabel: site
      replacement: "北京-世纪互联-M6"
    - targetLabel: role
      replacement: "跳板机"
    - targetLabel: nodename
      replacement: "dcim-01"
  namespaceSelector:
    matchNames:
    - monitoring

$ kubectl apply -f pro-dcim-01-node-exporter-monitoring.yaml

6. 创建 service-exporter 服务自动发现

$ cat pro-dcim-01-service-exporter-monitoring.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: pro-dcim-01-service-exporter
  namespace: monitoring
  labels:
    release: kube-prometheus-stack  # 确保与 Prometheus 的配置匹配
spec:
  selector:
    matchLabels:
      app: pro-dcim-01-service-exporter  # 查找标签为 pro-dcim-01-service-exporter 的 service
  endpoints:
  - port: pro-dcim-01-service-exporter   # 查找port名称为 pro-dcim-01-service-exporter endpoints
    interval: 15s
    path: /metrics
    relabelings:
    - sourceLabels: [__address__]
      regex: '([^:]+):\d+'
      targetLabel: instance
      replacement: '${1}'
      action: replace
    # 静态标签
    - targetLabel: region
      replacement: "边缘机器"
    - targetLabel: site
      replacement: "北京-世纪互联-M6"
    - targetLabel: role
      replacement: "跳板机"
    - targetLabel: nodename
      replacement: "dcim-01"
  namespaceSelector:
    matchNames:
    - monitoring

$ kubectl apply -f pro-dcim-01-service-exporter-monitoring.yaml

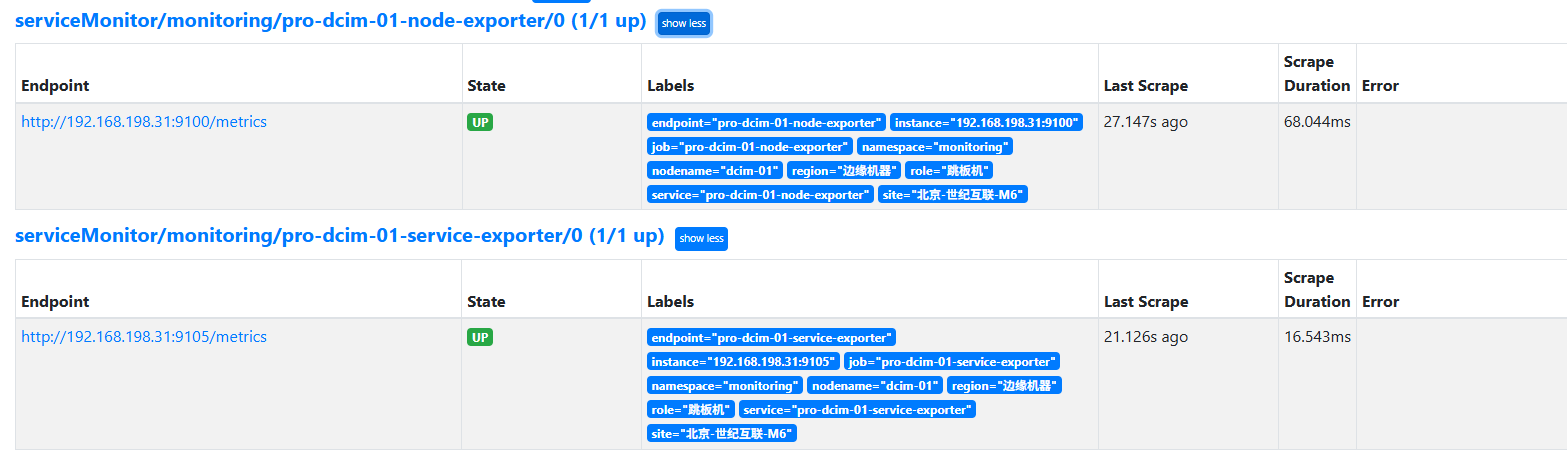

7. 检查 prometheus 页面

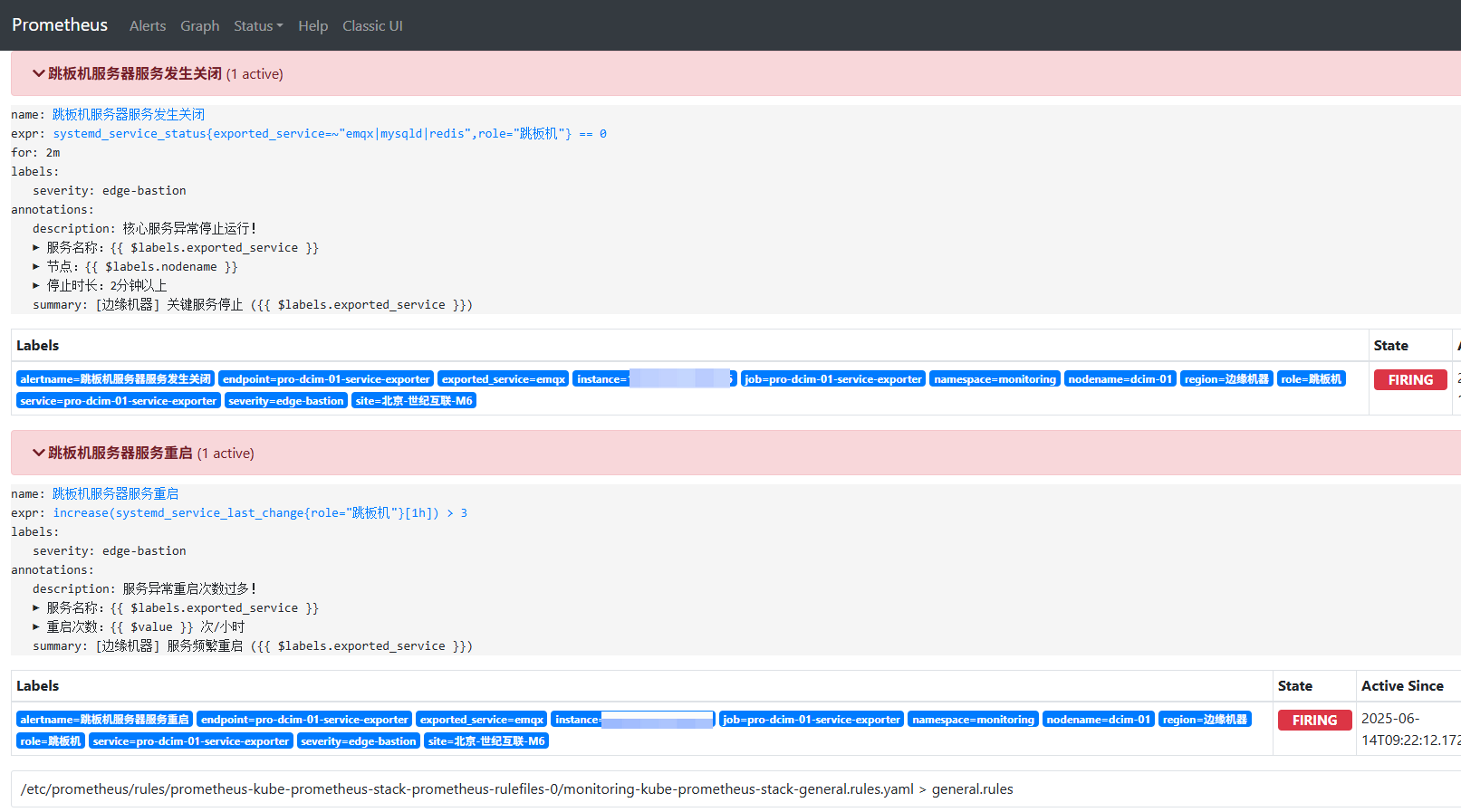

8. 告警规则

$ cat bastion-node-service-rules.yaml
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  labels:
    release: kube-prometheus-stack
    app: prometheus-operator
  name: edge-bastion-rules
  namespace: monitoring
spec:
  groups:
  # ==================== 系统级监控规则 ====================
  - name: edge-bastion-system-rules
    rules:
    - alert: 跳板机服务器宕机
      expr: up{role="跳板机"} == 0
      for: 5m
      labels:
        severity: "edge-bastion"
      annotations:
        summary: "[边缘机器] 跳板机节点失联 ({{ $labels.nodename }})"
        description: |
          边缘跳板机节点不可达！
          位置：{{ $labels.site }}
          节点：{{ $labels.nodename }} ({{ $labels.instance }})
          离线时长：5分钟以上

    - alert: 跳板机服务器CPU使用率高
      expr: 100 - (avg by(instance, nodename) (irate(node_cpu_seconds_total{role="跳板机",mode="idle"}[5m])) * 100) > 80
      for: 10m
      labels:
        severity: "edge-bastion"
      annotations:
        summary: "[边缘机器] CPU负载过高 ({{ $labels.nodename }})"
        description: |
          跳板机CPU持续高负载！
          当前使用率：{{ $value | printf "%.2f" }}%
          阈值：>80%
          持续时间：10分钟

    - alert: 跳板机服务器内存不足
      expr: (node_memory_MemAvailable_bytes{role="跳板机"} / node_memory_MemTotal_bytes{role="跳板机"}) * 100 < 15
      for: 10m
      labels:
        severity: "edge-bastion"
      annotations:
        summary: "[边缘机器] 内存不足 (dcim-01)"
        description: |
          可用内存低于安全阈值！
          当前可用：{{ $value | printf "%.2f" }}%
          阈值：<15%
          建议检查：内存泄漏或进程异常

  # ==================== 网络监控规则 ====================
  - name: edge-bastion-network-rules
    rules:
    - alert: 跳板机服务器网卡入站流量高
      expr: rate(node_network_receive_bytes_total{role="跳板机",device!~"lo|veth.*"}[1m]) / 1024 / 1024 > 20  # 超过20MB/s入站流量
      for: 5m
      labels:
        severity: "edge-bastion"
      annotations:
        summary: "[边缘机器] 入站流量过高 ({{ $labels.nodename }}@{{ $labels.device }})"
        description: |
          网络入站流量异常！
          网卡：{{ $labels.device }}
          当前速率：{{ $value | printf "%.2f" }} MB/s
          阈值：>20 MB/s
          可能原因：异常上传或网络攻击

    - alert: 跳板机服务器出站流量高
      expr: rate(node_network_transmit_bytes_total{role="跳板机",device!~"lo|veth.*"}[1m]) / 1024 / 1024 > 20  # 超过20MB/s出站流量
      for: 5m
      labels:
        severity: "edge-bastion"
      annotations:
        summary: "[边缘机器] 出站流量过高 ({{ $labels.nodename }}@{{ $labels.device }})"
        description: |
          网络出站流量异常！
          网卡：{{ $labels.device }}
          当前速率：{{ $value | printf "%.2f" }} MB/s
          阈值：>20 MB/s
          可能原因：异常下载或数据泄露

    - alert: 跳板机服务器流量异常
      expr: rate(node_network_receive_errs_total{role="跳板机",device!~"lo|veth.*"}[5m]) + rate(node_network_transmit_errs_total{role="跳板机"}[5m]) > 10
      for: 0m
      labels:
        severity: "edge-bastion"
      annotations:
        summary: "[边缘机器] 网络错误激增 ({{ $labels.nodename }})"
        description: |
          网络错误包数异常！
          5 分钟错误数：{{ $value }}
          阈值：>10个
          可能原因：网卡故障或网络拥塞

  # ==================== systemd 服务监控规则 ====================
  - name: edge-bastion-service-rules
    rules:
    - alert: 跳板机服务器服务发生关闭
      expr: systemd_service_status{role="跳板机"} == 0
      for: 2m
      labels:
        severity: "edge-bastion"
      annotations:
        summary: "[边缘机器] 关键服务停止 ({{ $labels.exported_service }})"
        description: |
          核心服务异常停止运行！
          服务名称：{{ $labels.exported_service }}
          节点：{{ $labels.nodename }}
          停止时长：2分钟以上

$ kubectl apply -f bastion-node-service-rules.yaml

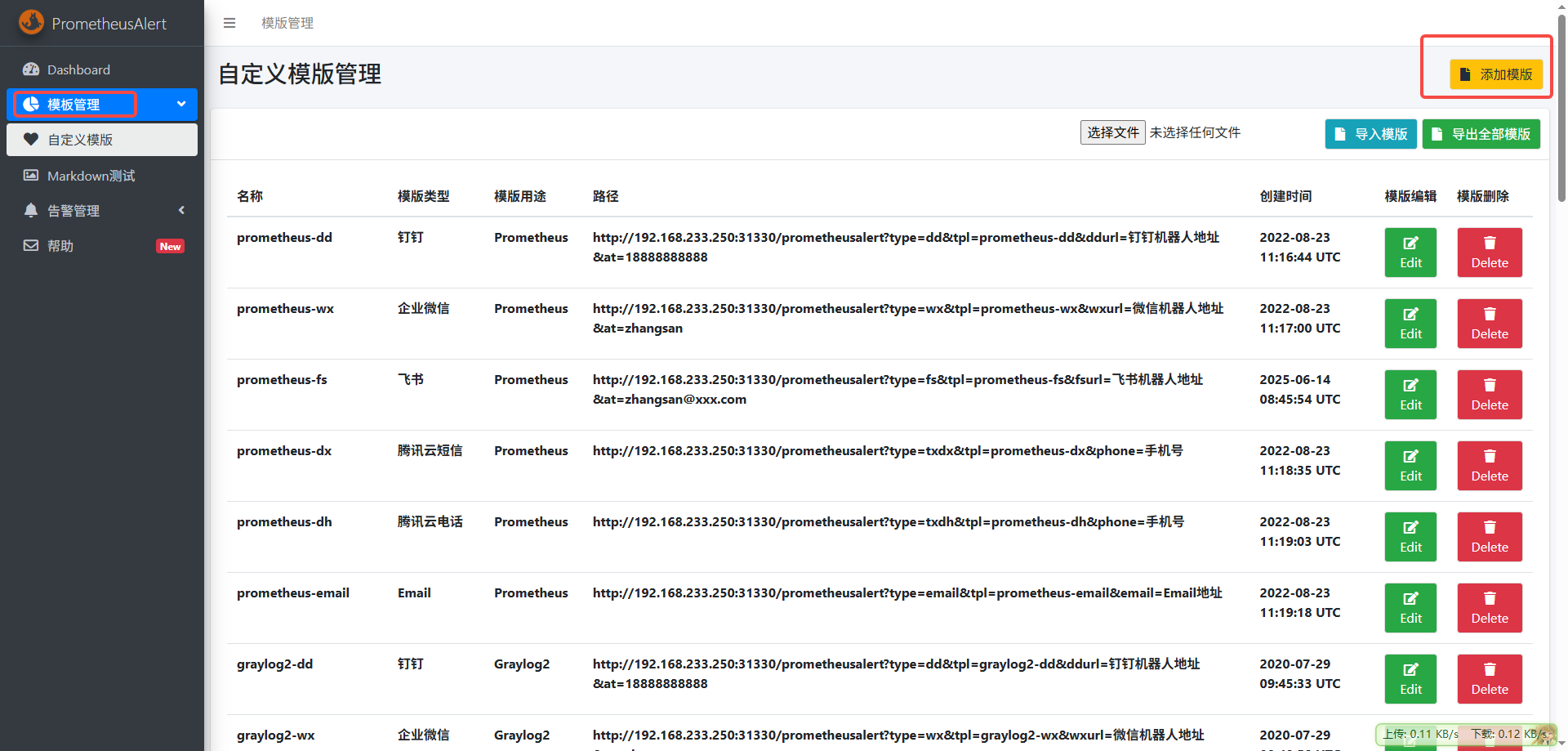

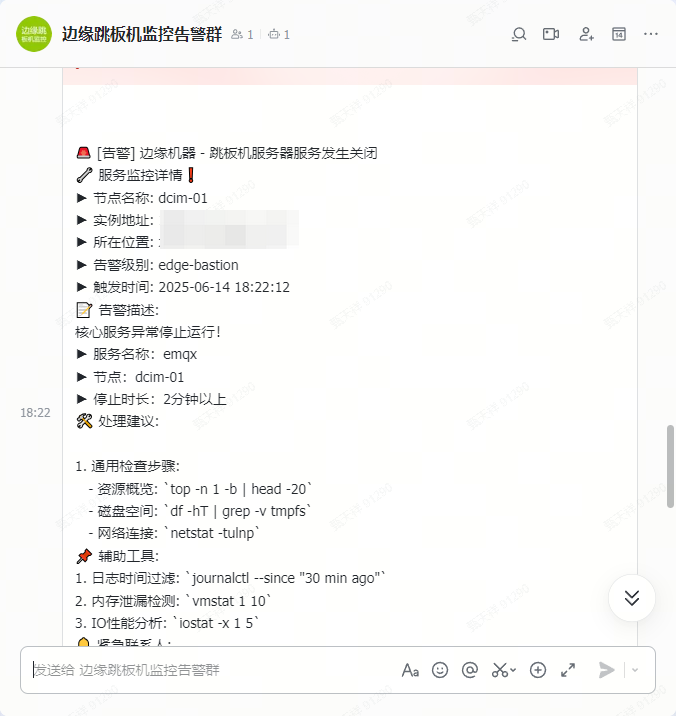

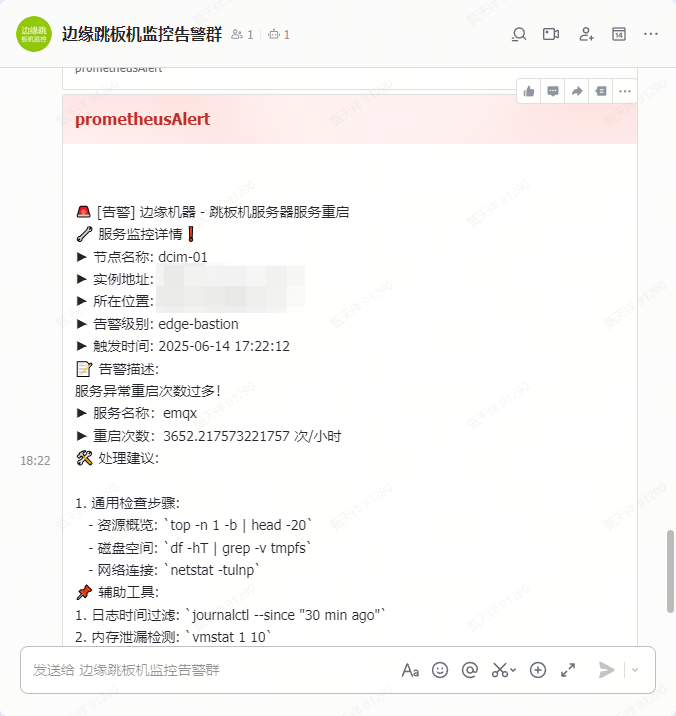

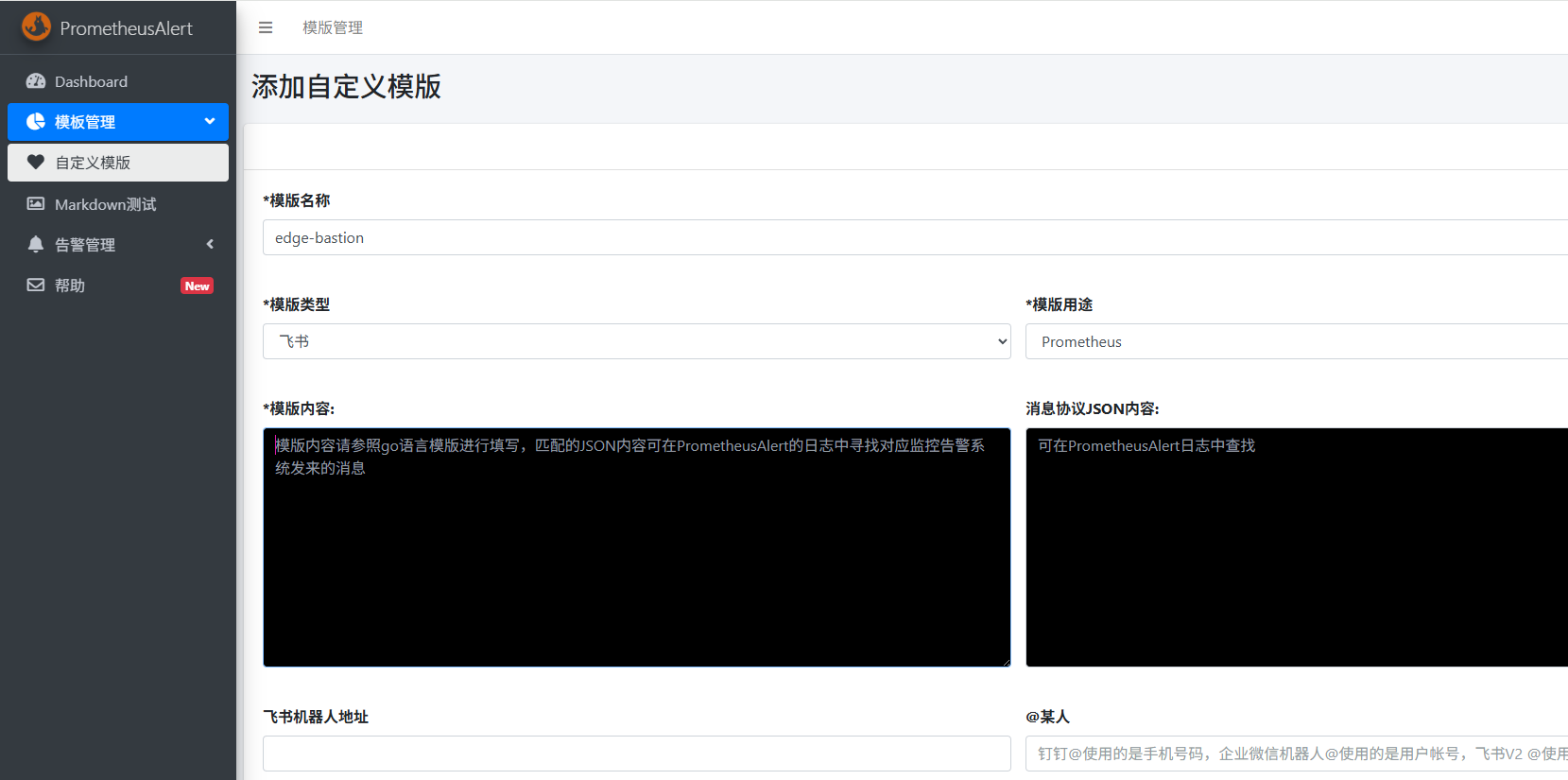

9. prometheusAlert 添加模板



模板如下：

{{ $alertmanagerURL := "http://192.168.233.32:32093" -}}
{{ $alerts := .alerts -}}

{{ range $alert := $alerts -}}
  {{ $groupKey := printf "%s|%s" $alert.labels.alertname $alert.status -}}
  {{ $urimsg := "" -}}
  {{ range $key,$value := $alert.labels -}}
    {{ $urimsg = print $urimsg $key "%3D%22" $value "%22%2C" -}}
  {{ end -}}

  {{ $grafanaURL := printf "http://192.168.233.32:32030/d/0p4iw4EHk/bian-yuan-tiao-ban-ji-zhuang-tai-xin-xi?orgId=1&refresh=30s&var-datasource=Prometheus&var-instance=%s" $alert.labels.instance }}

  {{ if eq $alert.status "resolved" -}}
🟢 边缘服务器恢复通知 🟢
  {{ else -}}
🚨 边缘服务器告警通知 🚨
  {{ end -}}

---

🔧 **服务监控详情** {{ if eq $alert.status "resolved" }}✅{{ else }}❗{{ end }}
🖥️ **节点名称**: {{ $alert.labels.nodename }}
🌐 **实例地址**: {{ $alert.labels.instance }}
📍 **所在位置**: {{ $alert.labels.site }}
⚠️ **告警级别**: {{ $alert.labels.severity }}
🕒 **开始时间**: {{ GetCSTtime $alert.startsAt }}
{{ if eq $alert.status "resolved" }}🕒 **结束时间**: {{ GetCSTtime $alert.endsAt }}
{{ end }}
{{ if $alert.labels.device }}🔌 **网卡名称**: **{{ $alert.labels.device }}**
{{ end }}
{{ if $alert.labels.exported_service }}🛎️ **服务名称**: {{ $alert.labels.exported_service }}
{{ end }}
---

📝 **告警描述**

{{ $alert.annotations.description }}


🚀 **快速操作**

- **[点我屏蔽该告警]({{ $alertmanagerURL }}/#/silences/new?filter=%7B{{ SplitString $urimsg 0 -3 }}%7D)**

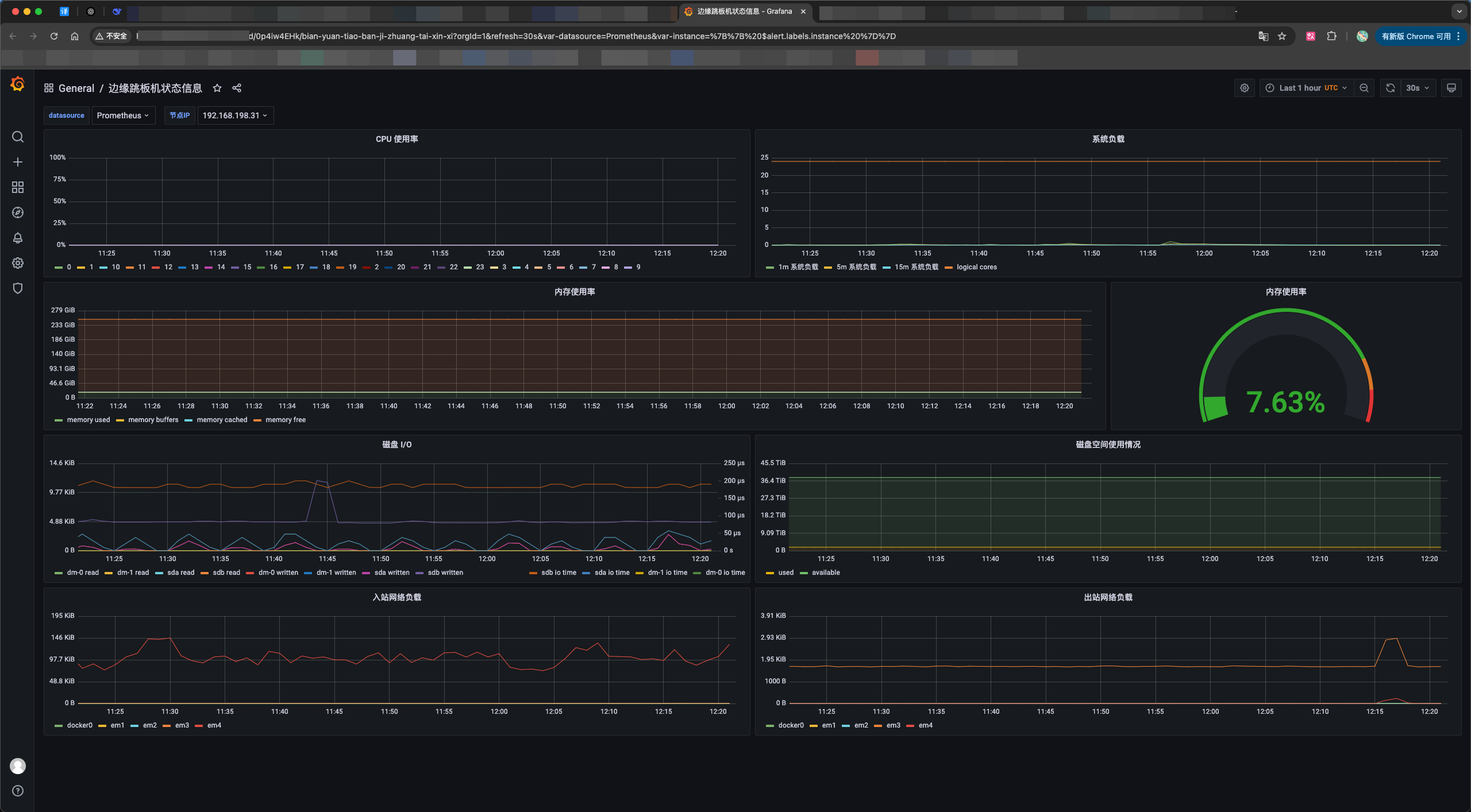

- **[点击我查看 Grafana 监控面板]({{ $grafanaURL }})**

---

🛠️ **处理建议**

{{ if or (eq $alert.labels.alertname "跳板机服务器出站流量高") (eq $alert.labels.alertname "跳板机服务器网卡入站流量高") }}
1. 流量分析工具：
   - 实时流量: nload -m {{ $alert.labels.device }}
   - 连接跟踪: nethogs {{ $alert.labels.device }}

{{ else if eq $alert.labels.alertname "跳板机服务器流量异常" }}
1. 网络错误诊断：
   - 错误统计: ip -s link show {{ $alert.labels.device }}
   - 驱动检测: ethtool {{ $alert.labels.device }}

{{ else if eq $alert.labels.alertname "跳板机服务器服务发生关闭" }}
1. 服务检查：
   - 日志查看: journalctl -u {{ $alert.labels.exported_service }} -n 50
   - 状态验证: systemctl status {{ $alert.labels.exported_service }}

{{ else if eq $alert.labels.alertname "跳板机服务器宕机" }}
1. 基础检查：
   - 连通性测试: ping -c 4 {{ $alert.labels.instance }}
   - 端口检测: nc -zv {{ $alert.labels.instance }} 9100

{{ else }}
1. 通用诊断：
   - 系统负载: top -n 1 -b | head -20
   - 磁盘空间: df -hT
   - 检查内存: free -h
{{ end }}
{{ end }}

10. helm 包修改

      routes:
      - match:
          severity: critical  # 匹配严重级别 (critical) 的告警
        receiver: critical-alerts  # 严重告警发送到 critical-alerts 接收器
        group_interval: 5m  # 严重告警每 5 分钟可以发送一组
        repeat_interval: 1h  # 严重告警每 1 小时重复提醒一次
      - match:
          severity: warning  # 匹配警告级别 (warning) 的告警
        receiver: warning-alerts  # 警告告警发送到 warning-alerts 接收器
        repeat_interval: 4h  # 警告告警每 4 小时重复提醒一次
      - match:
          severity: info  # 匹配信息级别 (info) 的告警
        receiver: info-alerts  # 信息告警发送到 info-alerts 接收器
        repeat_interval: 1h  # 信息告警每 2 小时重复提醒一次

      #### 边缘跳板机告警推送 ####
      - match:
          severity: edge-bastion # 匹配级别 (edge-bastion) 的告警
        receiver: edge-bastion  # 严重告警发送到 edge-bastion 接收器
        group_interval: 5m  # 严重告警每 5 分钟可以发送一组
        repeat_interval: 1h  # 严重告警每 1 小时重复提醒一次

    inhibit_rules:
      # 定义告警抑制规则，当较高优先级的告警存在时抑制较低优先级的告警
      - source_match:
          severity: 'critical'  # 来源是严重级别的告警
        target_match:
          severity: 'warning'  # 目标是警告级别的告警
        equal: ['alertname', 'namespace', 'instance']  # 如果告警名称、命名空间和实例相同，则抑制警告级别的告警
      - source_match:
          severity: 'warning'  # 来源是警告级别的告警
        target_match:
          severity: 'info'  # 目标是信息级别的告警
        equal: ['alertname', 'namespace', 'instance']  # 如果告警名称、命名空间和实例相同，则抑制信息级别的告警

    receivers:
      - name: edge-bastion   # 接收器，然后发送到飞书上面去
        webhook_configs:
          - url: http://webhook-service:8080/prometheusalert?type=fs&tpl=edge-bastion&fsurl=https://open.feishu.cn/open-apis/bot/v2/hook/xxxxxxxxxx-xxxxxxxxxxx-xxxxxxxx

更新 helm

$ helm -n monitoring upgrade --install kube-prometheus-stack ./ -f values.yaml

11. 查看告警消息




12. grafana 面板

{
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": "-- Grafana --",
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "editable": false,
  "gnetId": null,
  "graphTooltip": 1,
  "id": 75,
  "iteration": 1750749873112,
  "links": [],
  "panels": [
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 1,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 12,
        "x": 0,
        "y": 0
      },
      "hiddenSeries": false,
      "id": 2,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": true,
      "steppedLine": false,
      "targets": [
        {
          "expr": "(\n  (1 - rate(node_cpu_seconds_total{role=\"跳板机\", mode=\"idle\", instance=\"$instance\"}[$__rate_interval]))\n/ ignoring(cpu) group_left\n  count without (cpu)( node_cpu_seconds_total{role=\"跳板机\", mode=\"idle\", instance=\"$instance\"})\n)\n",
          "format": "time_series",
          "intervalFactor": 5,
          "legendFormat": "{{cpu}}",
          "refId": "A"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "CPU 使用率",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "percentunit",
          "label": null,
          "logBase": 1,
          "max": 1,
          "min": 0,
          "show": true
        },
        {
          "format": "percentunit",
          "label": null,
          "logBase": 1,
          "max": 1,
          "min": 0,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 0,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 12,
        "x": 12,
        "y": 0
      },
      "hiddenSeries": false,
      "id": 3,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "expr": "node_load1{role=\"跳板机\", instance=\"$instance\"}",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "1m 系统负载",
          "refId": "A"
        },
        {
          "expr": "node_load5{role=\"跳板机\", instance=\"$instance\"}",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "5m 系统负载",
          "refId": "B"
        },
        {
          "expr": "node_load15{role=\"跳板机\", instance=\"$instance\"}",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "15m 系统负载",
          "refId": "C"
        },
        {
          "expr": "count(node_cpu_seconds_total{role=\"跳板机\", instance=\"$instance\", mode=\"idle\"})",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "logical cores",
          "refId": "D"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "系统负载",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        },
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 1,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 18,
        "x": 0,
        "y": 7
      },
      "hiddenSeries": false,
      "id": 4,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": true,
      "steppedLine": false,
      "targets": [
        {
          "expr": "(\n  node_memory_MemTotal_bytes{role=\"跳板机\", instance=\"$instance\"}\n-\n  node_memory_MemFree_bytes{role=\"跳板机\", instance=\"$instance\"}\n-\n  node_memory_Buffers_bytes{role=\"跳板机\", instance=\"$instance\"}\n-\n  node_memory_Cached_bytes{role=\"跳板机\", instance=\"$instance\"}\n)\n",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "memory used",
          "refId": "A"
        },
        {
          "expr": "node_memory_Buffers_bytes{role=\"跳板机\", instance=\"$instance\"}",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "memory buffers",
          "refId": "B"
        },
        {
          "expr": "node_memory_Cached_bytes{role=\"跳板机\", instance=\"$instance\"}",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "memory cached",
          "refId": "C"
        },
        {
          "expr": "node_memory_MemFree_bytes{role=\"跳板机\", instance=\"$instance\"}",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "memory free",
          "refId": "D"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "内存使用率",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        },
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "cacheTimeout": null,
      "datasource": "$datasource",
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "thresholds"
          },
          "mappings": [
            {
              "options": {
                "match": "null",
                "result": {
                  "text": "N/A"
                }
              },
              "type": "special"
            }
          ],
          "max": 100,
          "min": 0,
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "rgba(50, 172, 45, 0.97)",
                "value": null
              },
              {
                "color": "rgba(237, 129, 40, 0.89)",
                "value": 80
              },
              {
                "color": "rgba(245, 54, 54, 0.9)",
                "value": 90
              }
            ]
          },
          "unit": "percent"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 7,
        "w": 6,
        "x": 18,
        "y": 7
      },
      "id": 5,
      "interval": null,
      "links": [],
      "maxDataPoints": 100,
      "options": {
        "orientation": "horizontal",
        "reduceOptions": {
          "calcs": [
            "lastNotNull"
          ],
          "fields": "",
          "values": false
        },
        "showThresholdLabels": false,
        "showThresholdMarkers": true,
        "text": {}
      },
      "pluginVersion": "8.0.5",
      "targets": [
        {
          "expr": "100 -\n(\n  avg(node_memory_MemAvailable_bytes{role=\"跳板机\", instance=\"$instance\"})\n/\n  avg(node_memory_MemTotal_bytes{role=\"跳板机\", instance=\"$instance\"})\n* 100\n)\n",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "",
          "refId": "A"
        }
      ],
      "title": "内存使用率",
      "type": "gauge"
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 0,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 12,
        "x": 0,
        "y": 14
      },
      "hiddenSeries": false,
      "id": 6,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [
        {
          "alias": "/ read| written/",
          "yaxis": 1
        },
        {
          "alias": "/ io time/",
          "yaxis": 2
        }
      ],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "expr": "rate(node_disk_read_bytes_total{role=\"跳板机\", instance=\"$instance\", device=~\"mmcblk.p.+|nvme.+|rbd.+|sd.+|vd.+|xvd.+|dm-.+|dasd.+\"}[$__rate_interval])",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "{{device}} read",
          "refId": "A"
        },
        {
          "expr": "rate(node_disk_written_bytes_total{role=\"跳板机\", instance=\"$instance\", device=~\"mmcblk.p.+|nvme.+|rbd.+|sd.+|vd.+|xvd.+|dm-.+|dasd.+\"}[$__rate_interval])",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "{{device}} written",
          "refId": "B"
        },
        {
          "expr": "rate(node_disk_io_time_seconds_total{role=\"跳板机\", instance=\"$instance\", device=~\"mmcblk.p.+|nvme.+|rbd.+|sd.+|vd.+|xvd.+|dm-.+|dasd.+\"}[$__rate_interval])",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "{{device}} io time",
          "refId": "C"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "磁盘 I/O",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        },
        {
          "format": "s",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 1,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 12,
        "x": 12,
        "y": 14
      },
      "hiddenSeries": false,
      "id": 7,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [
        {
          "alias": "used",
          "color": "#E0B400"
        },
        {
          "alias": "available",
          "color": "#73BF69"
        }
      ],
      "spaceLength": 10,
      "stack": true,
      "steppedLine": false,
      "targets": [
        {
          "expr": "sum(\n  max by (device) (\n    node_filesystem_size_bytes{role=\"跳板机\", instance=\"$instance\", fstype!=\"\"}\n  -\n    node_filesystem_avail_bytes{role=\"跳板机\", instance=\"$instance\", fstype!=\"\"}\n  )\n)\n",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "used",
          "refId": "A"
        },
        {
          "expr": "sum(\n  max by (device) (\n    node_filesystem_avail_bytes{role=\"跳板机\", instance=\"$instance\", fstype!=\"\"}\n  )\n)\n",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "available",
          "refId": "B"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "磁盘空间使用情况",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        },
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 0,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 12,
        "x": 0,
        "y": 21
      },
      "hiddenSeries": false,
      "id": 8,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "expr": "rate(node_network_receive_bytes_total{role=\"跳板机\", instance=\"$instance\", device!=\"lo\"}[$__rate_interval])",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "{{device}}",
          "refId": "A"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "入站网络负载",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        },
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 0,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 12,
        "x": 12,
        "y": 21
      },
      "hiddenSeries": false,
      "id": 9,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "expr": "rate(node_network_transmit_bytes_total{role=\"跳板机\", instance=\"$instance\", device!=\"lo\"}[$__rate_interval])",
          "format": "time_series",
          "intervalFactor": 2,
          "legendFormat": "{{device}}",
          "refId": "A"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "出站网络负载",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        },
        {
          "format": "bytes",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": 0,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "$datasource",
      "fill": 1,
      "fillGradient": 0,
      "gridPos": {
        "h": 7,
        "w": 24,
        "x": 0,
        "y": 28
      },
      "hiddenSeries": false,
      "id": 10,
      "legend": {
        "alignAsTable": false,
        "avg": false,
        "current": false,
        "max": false,
        "min": false,
        "rightSide": false,
        "show": true,
        "sideWidth": null,
        "total": false,
        "values": false
      },
      "lines": true,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "options": {
        "alertThreshold": true
      },
      "percentage": false,
      "pluginVersion": "8.0.5",
      "pointradius": 5,
      "points": false,
      "renderer": "flot",
      "repeat": null,
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "expr": "systemd_service_status{role=\"跳板机\", instance=\"$instance\"}",
          "format": "time_series",
          "intervalFactor": 1,
          "legendFormat": "{{exported_service}}",
          "refId": "A"
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeRegions": [],
      "timeShift": null,
      "title": "系统服务状态",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "short",
          "label": "状态 (1=运行, 0=未运行)",
          "logBase": 1,
          "max": 1,
          "min": 0,
          "show": true
        },
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": 1,
          "min": 0,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    }
  ],
  "refresh": "30s",
  "schemaVersion": 30,
  "style": "dark",
  "tags": [
    "node-exporter-mixin"
  ],
  "templating": {
    "list": [
      {
        "current": {
          "selected": false,
          "text": "Prometheus",
          "value": "Prometheus"
        },
        "description": null,
        "error": null,
        "hide": 0,
        "includeAll": false,
        "label": null,
        "multi": false,
        "name": "datasource",
        "options": [],
        "query": "prometheus",
        "refresh": 1,
        "regex": "",
        "skipUrlSync": false,
        "type": "datasource"
      },
      {
        "allValue": null,
        "current": {
          "selected": false,
          "text": "192.168.198.31",
          "value": "192.168.198.31"
        },
        "datasource": "$datasource",
        "definition": "",
        "description": "选择跳板机节点",
        "error": null,
        "hide": 0,
        "includeAll": false,
        "label": "节点IP",
        "multi": false,
        "name": "instance",
        "options": [],
        "query": {
          "query": "label_values(node_exporter_build_info{role=\"跳板机\"}, instance)",
          "refId": "Prometheus-instance-Variable-Query"
        },
        "refresh": 2,
        "regex": "",
        "skipUrlSync": false,
        "sort": 0,
        "tagValuesQuery": "",
        "tagsQuery": "",
        "type": "query",
        "useTags": false
      }
    ]
  },
  "time": {
    "from": "now-1h",
    "to": "now"
  },
  "timepicker": {
    "refresh_intervals": [
      "5s",
      "10s",
      "30s",
      "1m",
      "5m",
      "15m",
      "30m",
      "1h",
      "2h",
      "1d"
    ],
    "time_options": [
      "5m",
      "15m",
      "1h",
      "6h",
      "12h",
      "24h",
      "2d",
      "7d",
      "30d"
    ]
  },
  "timezone": "utc",
  "title": "边缘跳板机状态信息",
  "uid": "zhentianxiang",
  "version": 1
}

效果截图


云原生与容器技术

Prometheus

License: CC BY 4.0
